Elevate Your Product Performance with Precision-Engineered Components
Do you design complex parts with tight tolerances and intricate features? If so, standard injection molding may not deliver the accuracy and consistency your project demands. Precision injection molding requires specialized expertise. It also demands advanced equipment and meticulous attention to detail at every step.
At Fathom, our precision injection molding capabilities enable us to produce precise plastic components with complex geometries, exceptional dimensional accuracy and superior surface finishes. Our team is very skilled at producing small, intricate parts that maintain consistent quality from one production run to another. This makes us a valued partner of customers in the medical, defense, aerospace and other industries where high performance is non-negotiable.
Our Advanced Precision
Injection Molding Capabilities
Precision Tooling Expertise
Successful high-precision injection molding starts with exceptional tooling. Our expert toolmakers use in-house, state-of-the-art machine tools to build mold tools with precise specifications:

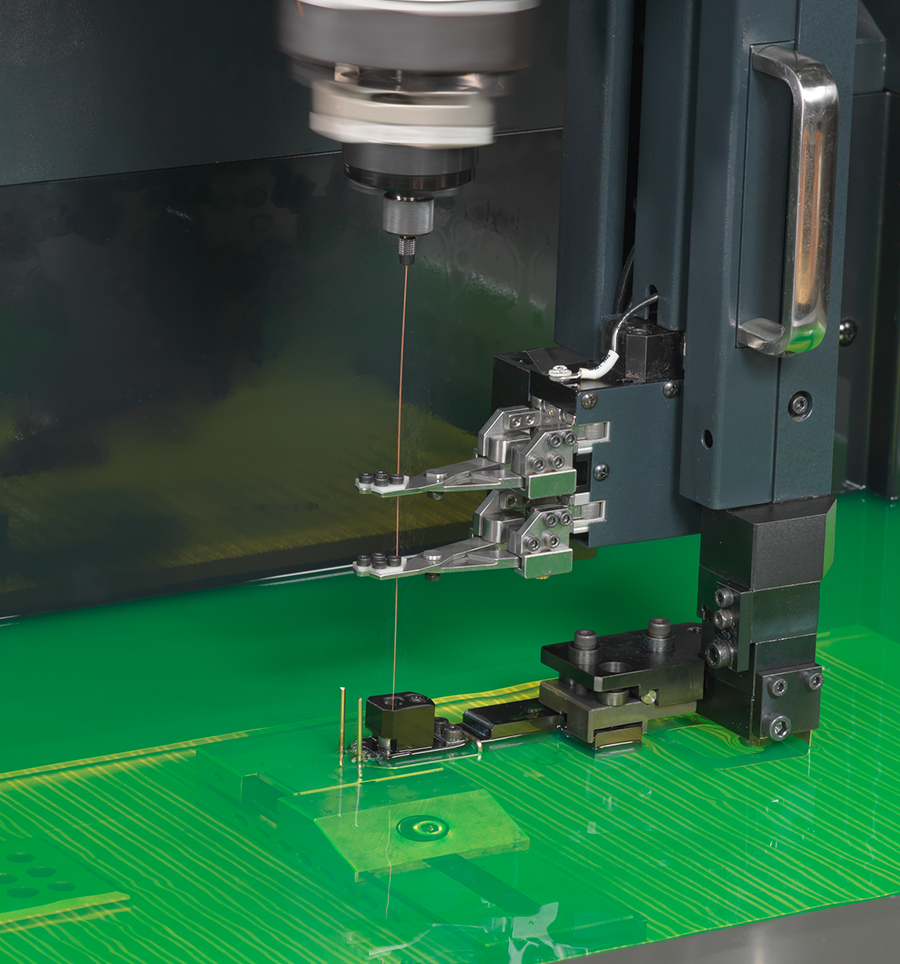

Wire EDM Technology // Wire EDM cutting can create intricate features in hardened steel. It does this with a precision that’s not possible using CNC machining.
CNC Hard Milling // CNC machining is used to achieve complex, high-precision geometries while providing smooth surface finishes.
Multi-Axis Machining // This type of machining produces complex features that are impossible with single-axis machining.
Advanced Cooling Systems // Some parts need enhanced cooling in order to achieve acceptable cycle times and minimize part warpage. In these cases, Fathom’s Hartland, WI facility can 3D print metal cores with conformal cooling channels. These cooling channels are located just below the surface of the core and place cooling water as close as possible to the part for maximum cooling.
Fathom Manufacturing’s
High Precision Injection Molding Process
1 // Engineering Consultation & Design Optimization
Our precision injection molding process begins with a thorough engineering review of your part design:
- Advanced Design for Manufacturability (DFM) analysis
- Gate location optimization for balanced filling
- Wall thickness evaluation for dimensional stability
- Optimizing the draft angle and parting line for improved aesthetics
- Tolerance stack-up analysis for multi-component assemblies
2 // Precision Tool Development
We design and build precision tools that are engineered to meet your high-precision injection molding requirements:
- We select a grade of tool steel that is optimized for your estimated part volume
- We use precision machining techniques that include hard milling and wire EDM
- Conformal cooling design for improved cooling and dimensional stability, if needed
- Polishing to mirror finishes when required for optical components or cosmetic surfaces
3 // First Article Inspection & Validation
Our comprehensive validation process ensures your injection molded parts meet your exact specifications:
- Coordinate Measuring Machine (CMM) verification
- Optical scanning for complete dimensional analysis
- GD&T (Geometric Dimensioning and Tolerancing) evaluation
- Material certification and testing
- Functional testing under application conditions
4 // Production Excellence & Quality Assurance
Our ISO 9001-certified manufacturing processes ensure consistent quality with:
- Statistical Process Control (SPC) with real-time monitoring
- In-process inspection utilizing vision systems
- Material lot traceability and documentation
- Cleanroom molding capabilities for medical and sensitive applications
- Complete quality documentation packages
5 // Ongoing Engineering Support
As your production needs evolve, our engineering team provides:
- Tool maintenance optimization plans
- Process refinement for improved efficiency
- Material recommendations as technologies advance
- Secondary operation integration when required
- Scale-up strategies from prototype to full production
Industries Served
Through High Precision Injection Molding
Medical & Healthcare // Our precision injection molding capabilities are ideal for producing components for a variety of medical devices. They include diagnostic equipment, surgical instruments and drug delivery systems. All of them must be manufactured under strict quality controls.
Automotive & Transportation // We produce precision components for safety systems, sensor housings, connectors and other critical applications where reliability and consistent performance are essential.
Aerospace & Defense // Our high-precision plastic injection molding services deliver lightweight, high-strength components. They must meet rigorous industry specifications and certification requirements.
Electronics & Consumer Devices // We help bring your innovative designs to market with exceptional quality and consistency. Components include intricate connector systems and precise optical components.
Why Choose Fathom for High Precision Injection Molding?
At Fathom, we offer comprehensive precision injection molding services backed by decades of engineering and production expertise. Our integrated approach combines tool design, building, validation and production under one roof. That provides you with a single point of accountability. This streamlined process enables faster problem-solving and consistently high-quality parts.
Our engineering team understands the critical nature of precision components. That’s why we provide hands-on, expert guidance from concept through production. Whether you need prototype parts for validation testing or full-scale production, Summit by Fathom delivers the precision, quality and reliability your project deserves.
Are you ready to take your precision components to the next level? Let us help you achieve exceptional results with your next high-precision plastic injection molding project!
